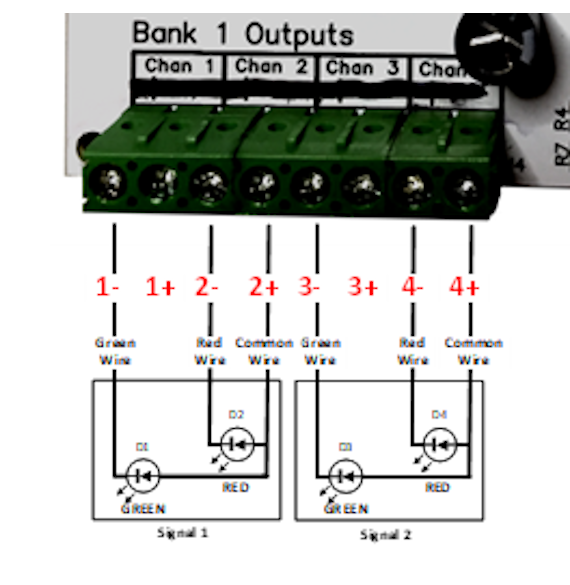

With this module you can control eight lights, signals or other LED devices requiring up to 20mA of current switched on or off. You can control from any DCC Command Station and Booster, the devices's own web page or the Wifitrax WFD-60. You can also use our free Tower Operator App to control eight LED lamps by tapping a symbol on the custom layout map you build on your Windows 10 or Android computer or tablet. You can control single lights or group the outputs to control 2-Light or 3-Light Signals by tapping the symbol on your layout map. If you have devices such as signals with multiple LEDs with common anode wire, you should use this product.
This Wi-Fi LED Controller Controller provides Wi-Fi Control of eight LED lamps. This product is useful when you have a group of up to eight lights fairly close together. If you have more than eight lights in fairly close proximity you can use a second LED Controller Controller. Full Description and Specification Read the Quick Start Document Read the Full Manual
Detail to be added
Length: 100mm (3.94") Width: 80mm (3.15") Maximum Height: 15mm (0.59")
Installs on your layout to provide direct Wi-Fi control of LEDs. Control compatible with:
DCC Input using Accessory Addressing,
In-built Web Pages,
WFD-60 Wi-Fi Gateway using Web-Page Panels,
Wifitrax Tower Operator App on Android or Windows 10.
Provides individual on/off control of eight 2-wire outputs, with the negative sides common and connected together on the module. If you want a common positive side, use the WFG-84.
1000 Ohm Series resistors provided on unit.
12 to 18 Volts DC independent power, wired to screw teminals on unit. This unit does not operate using AC.
Power supplied from NMRA Compatible DCC Booster may be used as alternative to DC.
Limited by series resistors, 20mA per channel.
Eight pairs of screw terminal outputs to connect to LEDs, incandescent lamps or other devices, positive side common.
Two screw terminal connections for DCC Control Input.
Two screw terminal connections for DC or DCC power. Do not use AC.
Four M3 mounting holes for use with screws, nuts and spacers, or suitable wood screws with spacers.
