A new concept in Model Railroad Control.

WDMI-32 Wi-Fi/DCC Locomotive Interface Module

WDMI-32 Wi-Fi/DCC Locomotive Interface Module

In Stock Now

US$49.00

You can install this Wi-Fi/DCC Interface in many HO or other scale locomotives together with your choice of suitable Sound or Non-Sound DCC Decoder. This module provides DCC signals to the decoder controlled by hand-held throttles supporting the Hoffman WiThrottle protocol as used by JMRI. Examples are WiThrottle on Apple IOS, Engine Driver on Android and the popular TCS UWT-100 Universal Wi-Fi Throttle. DC power can be supplied from a 12 volt battery. YOU DO NOT NEED TO INSTALL JMRI!

Read the Quick Start Document Read the Full Manual    Update your Firmware

SKU :WDMI-32 Categories : Mobile Wi-Fi/DCC Interfaces,Mobile Controllers Tag :Wifi Control

WDMI-32 Wi-Fi/DCC Locomotive Interface Module for Large Scale

This module can be installed within many HO or other scale locomotives where continuous running current is no more than 1 amp and provides Wi-Fi control of a DCC Decoder installed in the locomotive. It is compatible with NMRA compliant decoders.

You can drive the locomotive using the Engine Driver app by M. Steve Todd on Android phones or tablets, WiThrottle app by Brett Hoffman on Apple IOS iPhones or iPad and the new and popular TCS UWT-100 Universal Wi-Fi Throttle. You can also use the WifiTrax Loco Operator app.

The unit is intended for installation in battery powered locomotives with 10-18 Volt batteries.

Functions such as lighting and sound are all controllable from your hand-held device with custom function naming which provides labels for your chosen app or hand-held throttle Wi-Fi. In fact the capability is similar to our WFD-30 except that you only have one locomotive in which the WDMI-32 is installed. You can install these modules in as many locos as you like and each loco then appears as its own WiThrottle server.

Read about Wi-Fi/DCC

Read the Quick Start Document

WDMI-32 Wi-Fi/DCC Locomotive Interface Module

Preliminary Specification - Subject to change until product is released for sale.

Dimensions

Length: 40mm (1.57") Width: 18mm (0.71") Maximum Height: 5.0mm (0.12")

Functions and Modes of Operation

Installs in your locomotive to provide direct Wi-Fi controlled Bipolar DCC to your choice of DCC decoder. You must select a DCC decoder appropriate to the requirements of your locomotive. This can be sound or non-sound. All DCC functions are supported.

Output Ratings

Maximum Continuous Current: 1.0 Amp. Tested for 10 minutes duration.
Maximum Stall Current: 2.0 Amp.
Unit will become hot if continuously run at 1.0 Amp.

Power Supply Options

10 - 18 Volt Battery.

Mounting

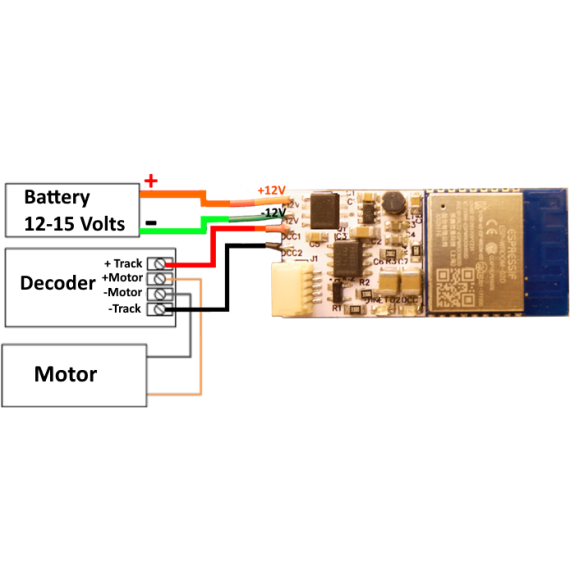

Use your own method of installation such as adhesive mounting tape. Wire to your battery and DCC decoder.

Connections

Wires for battery connection. Plus and Minus. Please observe correct polarity. FET protection provided against reverse connection.
Wires for DCC output connection to your suitable large-scale DCC Decoder.

Read the Quick Start Document
