WNI-32-CNT JST Connector for NCE Power Cab Circuit Board

Available now.

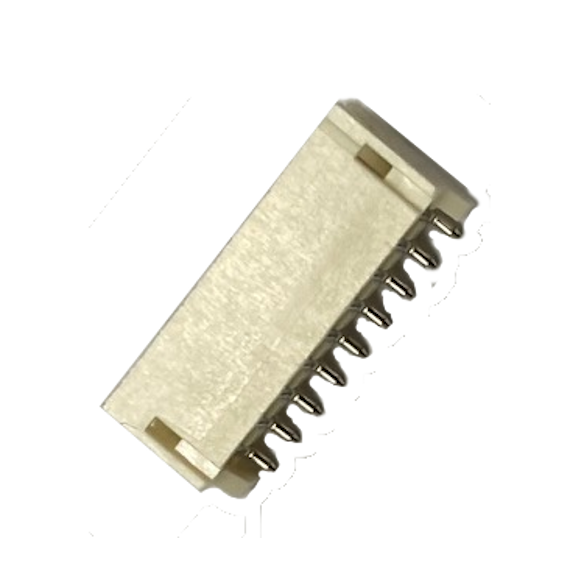

The WNI-32-CNT is a Connector Kit for use with the NCE Power Cab or Pro Cab. One of the 9-pin connectors in the kit can be soldered onto the NCE Circuit Board if this connector is absent. Usually this connector is present on the Circuit Board in NCE Pro Cabs, and is used to connect an NCE Radio Module. It is also used to connect the Wifitrax WNI-32 Wi-Fi module when it is installed in a Pro Cab or Power Cab. NCE often omits this connector from Power Cabs, so if you intend to use an NCE Power Cab as a Wi-Fi Pro Cab, by installing the WNI-32, you may need to add this connector.

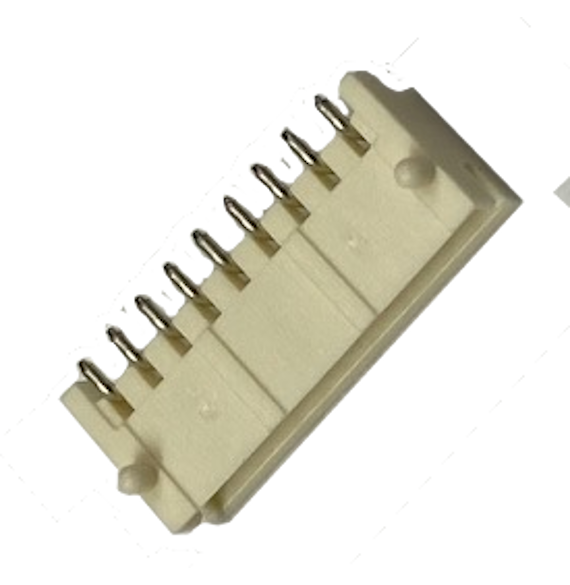

Notice that this connector has plastic bosses underneath and exactly fits th NCE circuit board. Other JST 9-pin connectors look similar but do not fit properly.
PLEASE NOTE: Some skill is required to install this connector by soldering and you must not bridge between pins with solder or you may damage your Power Cab. No doubt this will void your NCE Warranty, so you cannot expect them to fix your Pro Cab for free if you make a mess of this.
Wifitrax takes no responsibility for any damage you cause if you cannot install these connectors properly!
