WFD-31-CSE Plastic Case for WFD-31 Module
WFD-31-CSE Plastic Case for WFD-31 Module
Available now.

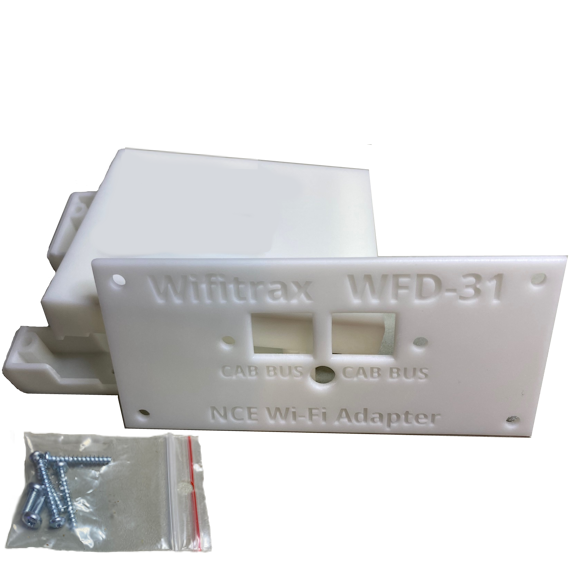

The WFD-31-CSE is a White Plastic Case for use with the WFD-31 NCE PCP/UTP Cab Bus Wi-Fi Interface. The case consists of upper and lower complex plastic components designed to exactly fit your WFD-31 while providing access to all switches and adjustments. A Front Panel allows the whole assembly to be mounted on your fascia with suitable cutout and your own screws. The casing is factory 3D printed using precision technology in white resin. 4 screws are included to fix the top and bottom parts together and two screws for the front panel.
The WFD-31 NCE PCP/UTP Cab Bus Wi-Fi Interface is not included and is sold separately.
WFD-31-CSE Plastic Case for WFD-27 Module
The WFD-31-CSE is a White Plastic Case for use with the WFD-31 NCE PCP/UTP Cab Bus Wi-Fi Interface. The case consists of upper and lower complex plastic components designed to exactly fit your WFD-31 while providing access to all switches and adjustments. A front panel completes the assembly and allows fitting to your fascia with a suitable cutout and your own wood screws. The casing is factory 3D printed using precision technology in white resin. 4 screws are included to fix the top and bottom parts together and 2 for the front panel.
WFD-31-CSE Plastic Case for WFD-27 Module
Material
3D Printed White Resin.
Process
SLA, Smooth Matte White Finish
Dimensions
Case Length: 82.5 mm (3.25 inch), Width: 70mm (2.76 inch), Thickness (assembled): 28.0mm (1.10 inch) Front Plate Height: 48.0mm (1.89 inch) Front Plate Width: 103.0mm (4.05 inch)
Mounting
Four holes on front panel for M3 screws.
